JLP 5/32 DK
JLP 5/32 DK

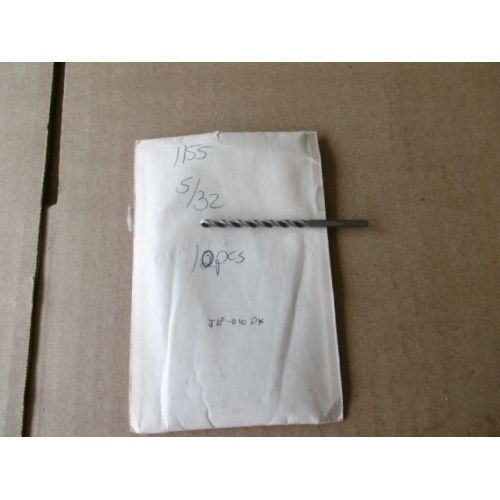

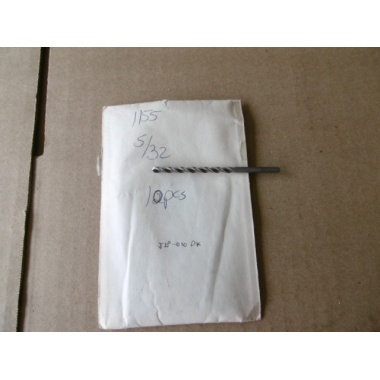

5/32" Parabolic Jobbers Length Drill Bit High Speed Steel Uncoated Durakut

Parabolic drills feature a unique flute design that greatly enhances chip flow, coolant flow to the drill point and heat dissipation. Recommended for Deep Hole drilling greater then three diameters deep without the need to reduce rate or withdraw the drill to clear chips, {Known as pecking}. Constant heavy feed rate is recommended. Parabolic drills have a much different flute design with special web thinning, helix angles and Land Width than standard Jobbers Drills. The flute design with a reinforced web increases drill strength and rigidity providing closer tolerance holes and higher speeds and feeds. General Purpose drills suitable for most applications on a wide variety of materials Ground from solid High Speed Steel Blanks Split Point drills = Self centering point eliminates "walking" and reduce thrust required
$1.00
<= 10
Total Price:
Add to Cart Buy Now
Print

Drill Diameter =5/32" {.1562"}

Flute Length = 2"

Overall Length = 3-1/8"

Drill Point = 135 Degree Split

Coating = Uncoated - Polished

High Speed Steel

P/N =PJD-010 DK

Packed 10 per unit, will have to re-pack if less than unit ordered, Drills are marked on shank Mfg, Size,HSS, ETC

Parabolic Flute Design

  • Availability: 10 In Stock
  • Model: Parabolic Drill Bit Jobbers Length Fractional High Speed
  • Manufacturer: Durakut Japan
